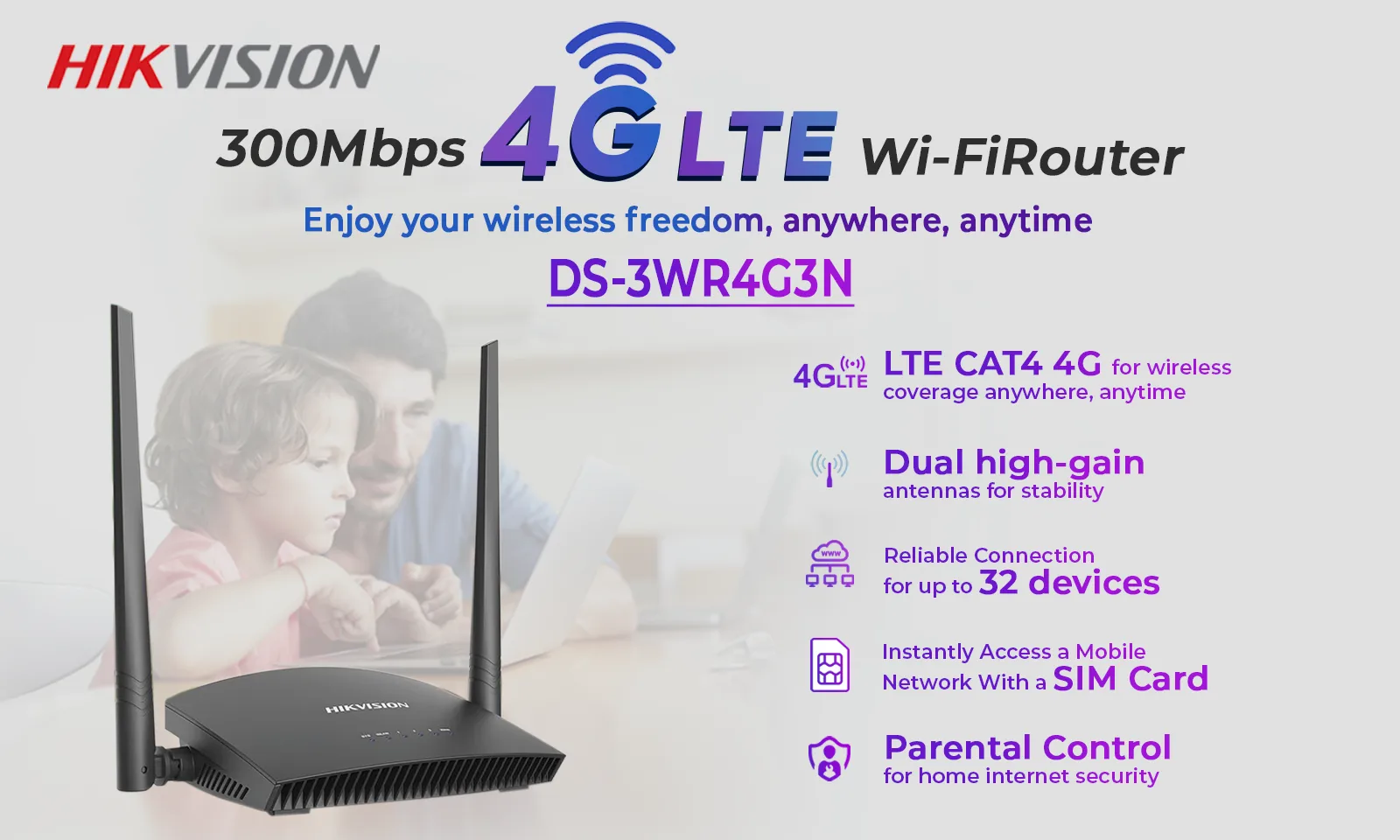

DS-3WR4G3N

Datasheet: DS-3WR4G3N

User Manual: DS-3WR4G3N

Quick Start Guide: DS-3WR4G3N

General

• Product Dimensions (W × H × D): 126mm×97mm×42mm
• Package Dimensions (W × H × D): 231mm×203mm×51mm
• Net Weight: 0.365kg
• Packing List
  • 4G LTE Router × 1
  • Power Adapter × 1
  • Ethernet Cable × 1
  • Quick Start Guide × 1
  • Regulatory Compliance and Safety Information × 1
• Packing Method: Single pack
• Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity: 10% to 90% RH non-condensing
• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity: 5% to 90% RH non-condensing
• Installation Mode: Desktop installation
• Max. Power Consumption: ≤ 6 W
• Gross Weight: 0.396 kg

Wireless Parameter

• Max. Transmission Rate of Air Interface: 2.4 GHz: 300 Mbps
• Wireless Standard: IEEE 802.11b/g/n @2.4GHz
• Working Frequency Band: 2.4 GHz
• Transmitting Power: up to 20dBm
• Wireless Performance: 2*2 MIMO supported
• Receiving Sensitivity
  • -86±2dBm@N20-MCS0
  • -66±2dBm@N20-MCS7
  • -83±2dBm@N40-MCS0
  • -64±2dBm@N40-MCS7
  • -92±2dBm@B-1M
  • -83±2dBm@B-11M
  • -88±2dBm@G-6M
  • -71±2dBm@G-54M
• Antenna
  • 2 External 4G/3G Antennas
  • 2 Internal Wi-Fi Antennas
• Network Type: LTE CAT.4
• Mobile Standards: FDD LTE, TDD-LTE,WCDMA
• Mobile Bands: FDD-LTE: B1/B3/B5/B7/B8/B20/B28AB TDD-LTE: B38/B40/B41 WCDMA: B1/B5/B8
• 4G Speed: DL: 150 Mbps, Upload: 50 Mbps

Hardware Parameter

• Network Interface
  • 2 × RJ45, 10/100 Mbps auto-negotiation
  • 1 × Nano SIM Card Slot
• LED Indicator
  • Internet LED*1
  • Wi-Fi LED*1
  • LAN LED*1
  • 4G/3G Signal strength LED*3
• Reset: WPS/Reset button*1
• Power Supply Method: 9 VDC, 0.6 A power adapter power supply
• Power Specifications: 9 VDC, 0.6 A

Software Function

• Application Function
  • 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
  • DHCP Server supported
  • Guest Network Configuration supported
  • Signal Adjustment supported
  • WiFi Schedule supported
• Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
• Security Mechanism: Hide SSID
• Management Method: Web
• Upgrade: Web
• System Log: System log
