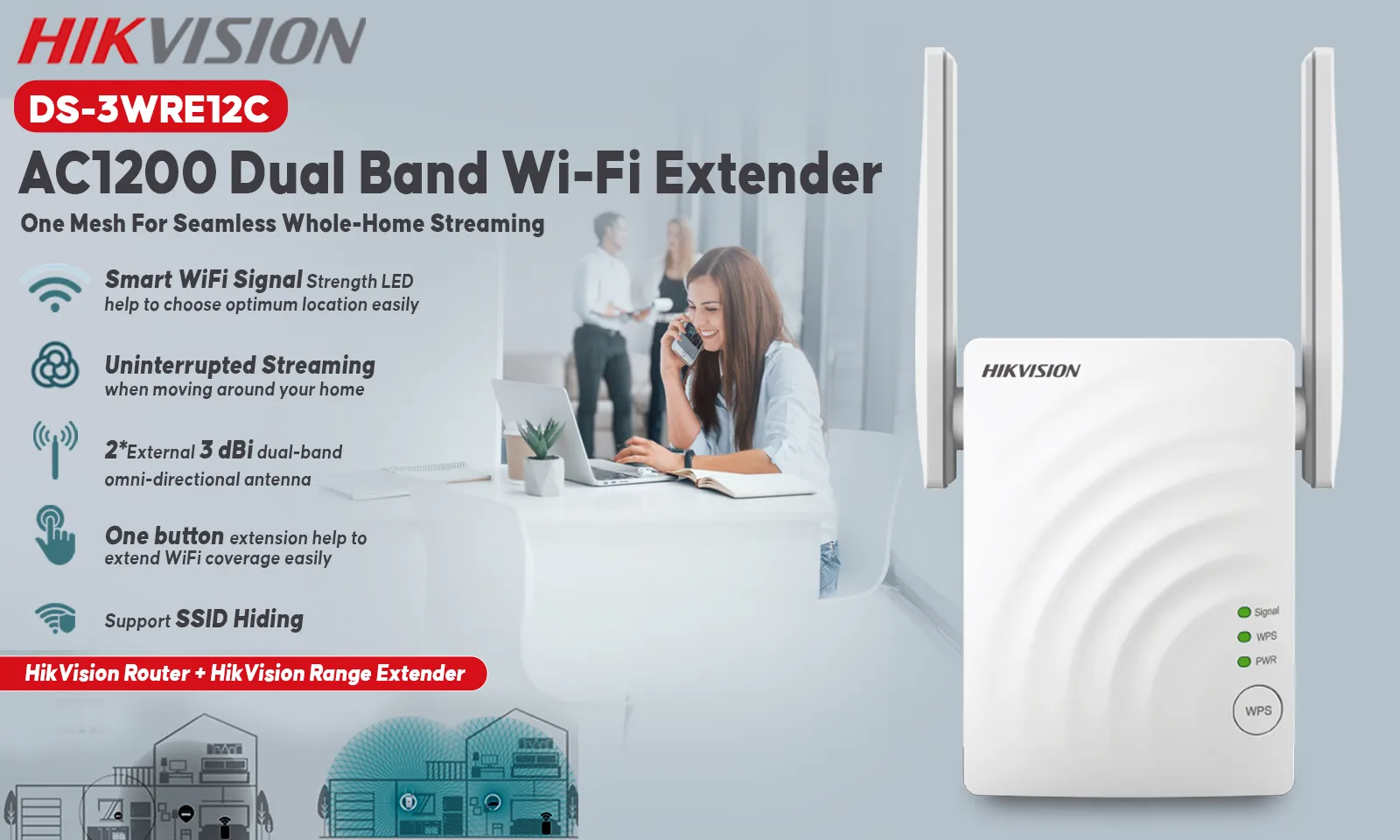

DS-3WRE12C

Datasheet: DS-3WRE12C

General

• Product Dimension (W × H × D): 80mm×58mm×48mm
• Package Dimension (W × H × D): 95mm×98mm×120mm
• Net Weight: 0.221 kg
• Packing List
  • WiFi Repeater × 1
  • Power Adapter × 1
  • Quick Start Guide × 1
  • Regulatory Compliance and Safety Information × 1
• Packing Method: Single pack
• Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity: 10% to 90% RH non-condensing
• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity: 10% to 90% RH non-condensing
• Max. Power Consumption: ≤ 5.2 W
• Gross Weight: 0.243 kg

Wireless Parameter

• Data Rate
  • ≤ 1167 Mbps
  • 2.4 GHz: 300 Mbps
  • 5 GHz: 867 Mbps
• Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
• Transmitting Power: 14 ± 1.5 dBm @ 2.4G-mcs7; 14 ± 1.5dBm @ 5G-mcs9
• Wireless Performance: 2*2 MIMO supported
• Receiving Sensitivity
  • -63 dB@AC80 -MCS9
  • -89 dB@AC80 -MCS0
• Antenna: 2 * External 3dBi dual-band omni-directional antenna

Hardware Parameter

• Network Interface: 1*10/100Mbps RJ45
• LED Indicator
  • 1 * Signal LED
  • 1 * WPS LED
  • 1 * Power LED
• Reset
  • 1 * WPS Button
  • 1 * Reset Button
• Power Supply Method: 9VDC, 0.8A, built-in

Software Function

• Application function: Repeater Mode，Access Point Mode
• Security Mode
  • Default encryption mode: Mix WPA-PSK/WPA2-PSK
  • WPA algorithm: TKIP
• Security Mechanism: Hide SSID
• Management Method: Web
• Upgrade: Web
• System Log: Firmware upgrade, Restore factory settings, Login password, and Reboot
